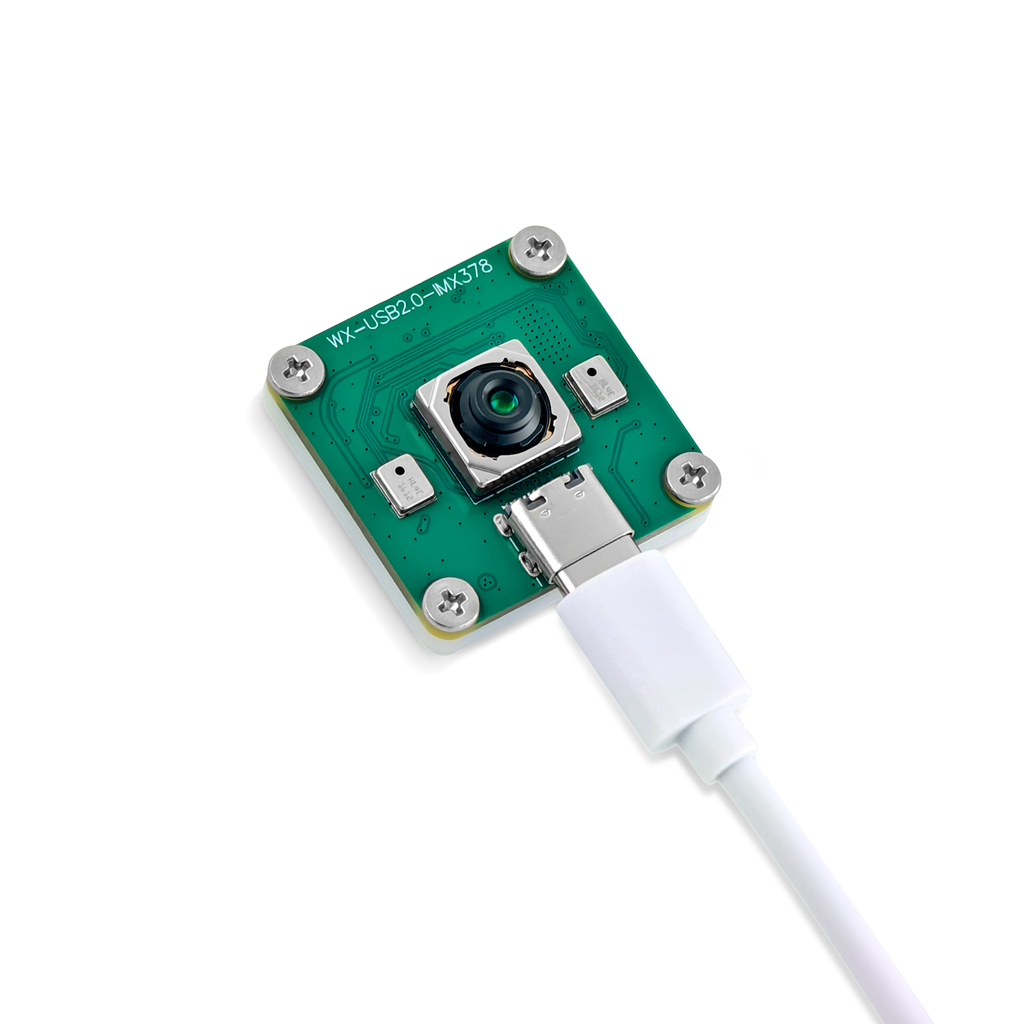

📷 Professional 12MP Sony IMX378 USB Camera Module | Auto-Focus | F1.79 Aperture | Plug-and-Play
✅ Universal Compatibility: Raspberry Pi, Windows, Mac OS, Linux - No Drivers Required
🔌 Dual Interface: USB Type-C & 4P Terminal for Flexible Connectivity
🎯 Perfect for: Robotics, Drones, Live Streaming, Video Conferencing, Industrial Inspection
Key Features
- High Resolution: 12MP (4056 x 3040) Sony IMX378 CMOS sensor
- Auto-Focus System: Fast and accurate phase detection autofocus
- Large Aperture: F1.79 for excellent low-light performance
- Plug-and-Play: Standard UVC protocol - no drivers needed
- Dual Connectivity: USB Type-C and 4P terminal interfaces
- Compact Design: 30mm x 30mm with 3D-printed protective housing
- Wide Compatibility: Works with Raspberry Pi, PC, Mac, and Linux systems
Technical Specifications
| Image Sensor | Sony IMX378 CMOS |
| Resolution | 12MP (4056 x 3040) |
| Video Output | 1080p @ 30fps, 720p @ 60fps |
| Field of View | 79° (standard angle) |
| Aperture | F1.79 (large aperture for low-light) |
| Focus System | Phase detection auto-focus |
| Pixel Size | 1.55μm x 1.55μm |
| Sensor Size | 1/2.3 inch |
| Interface | USB Type-C & 4P terminal (1.0mm pitch) |
| Protocol | UVC (USB Video Class) - plug-and-play |
| Board Size | 30mm x 30mm |
| Power Supply | 5V via USB |
| Operating Temperature | -10°C to 50°C |
| Weight | 25g (with housing) |
Connectivity Options
| USB Type-C | Direct connection to computers, Raspberry Pi 4/5, and modern devices |
| 4P Terminal (1.0mm pitch) | Flexible wiring for embedded systems and custom integrations |
Platform Compatibility
| Raspberry Pi | Pi 5, Pi 4B, Pi 3B+, Pi 3B, Pi Zero 2W (with USB adapter) |
| Windows | Windows 10, 11 (plug-and-play, no drivers needed) |
| Mac OS | Mac OS X 10.6 and later (native UVC support) |
| Linux | Ubuntu, Debian, Raspbian (V4L2 compatible) |

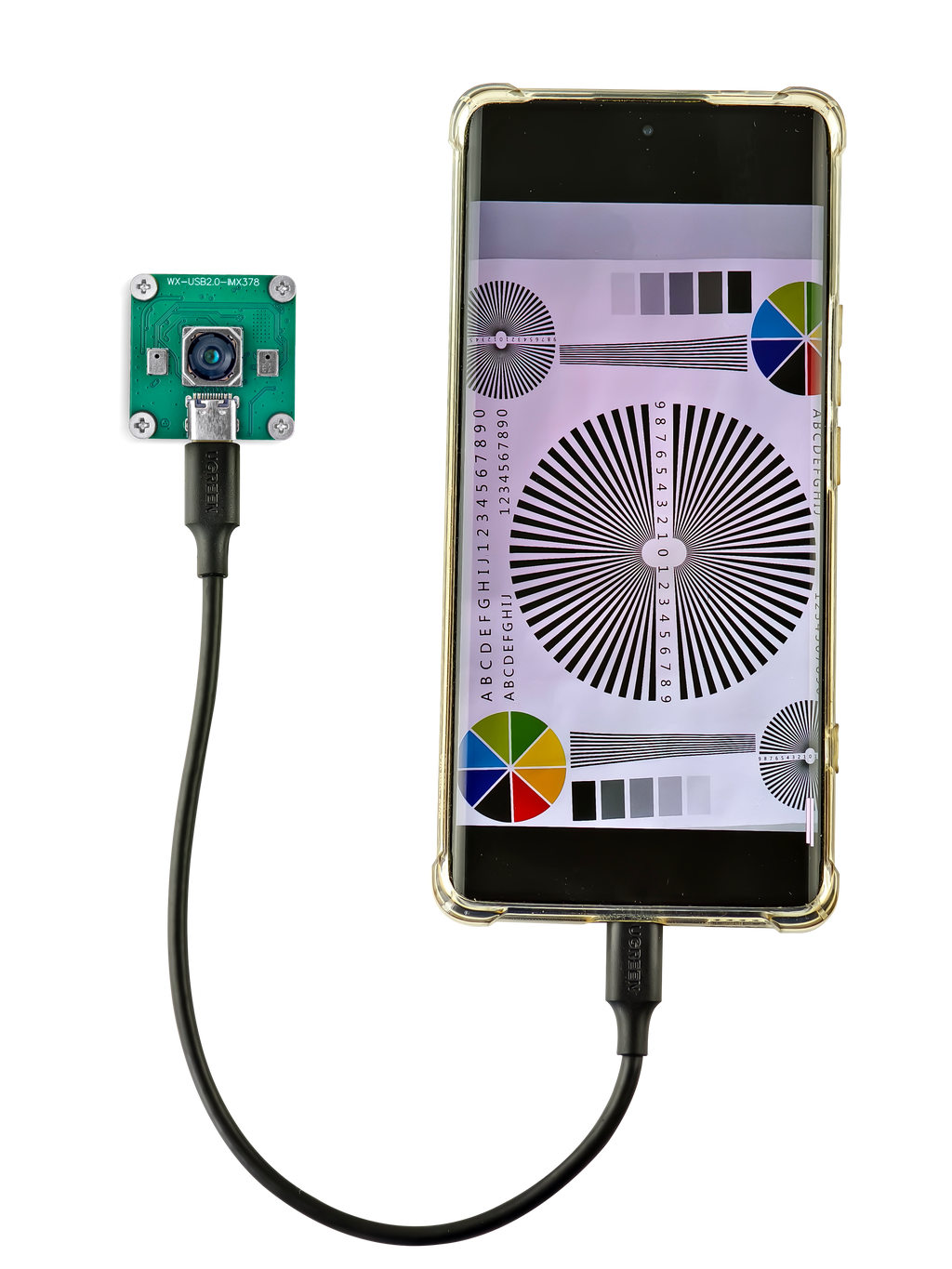

| Android | Android devices with USB OTG support |
Applications
- Robotics and autonomous systems (computer vision)
- Drone FPV and aerial photography
- Live streaming and content creation
- Video conferencing and remote meetings
- Industrial quality control and inspection
- Medical imaging and microscopy
- Security and surveillance systems
- Educational projects and STEM learning
- 3D scanning and photogrammetry
Package Contents
- 1x IMX378 12MP USB Camera Module with Auto-Focus
- 1x 3D-Printed Protective Housing
- 1x USB Type-C Cable (1m)

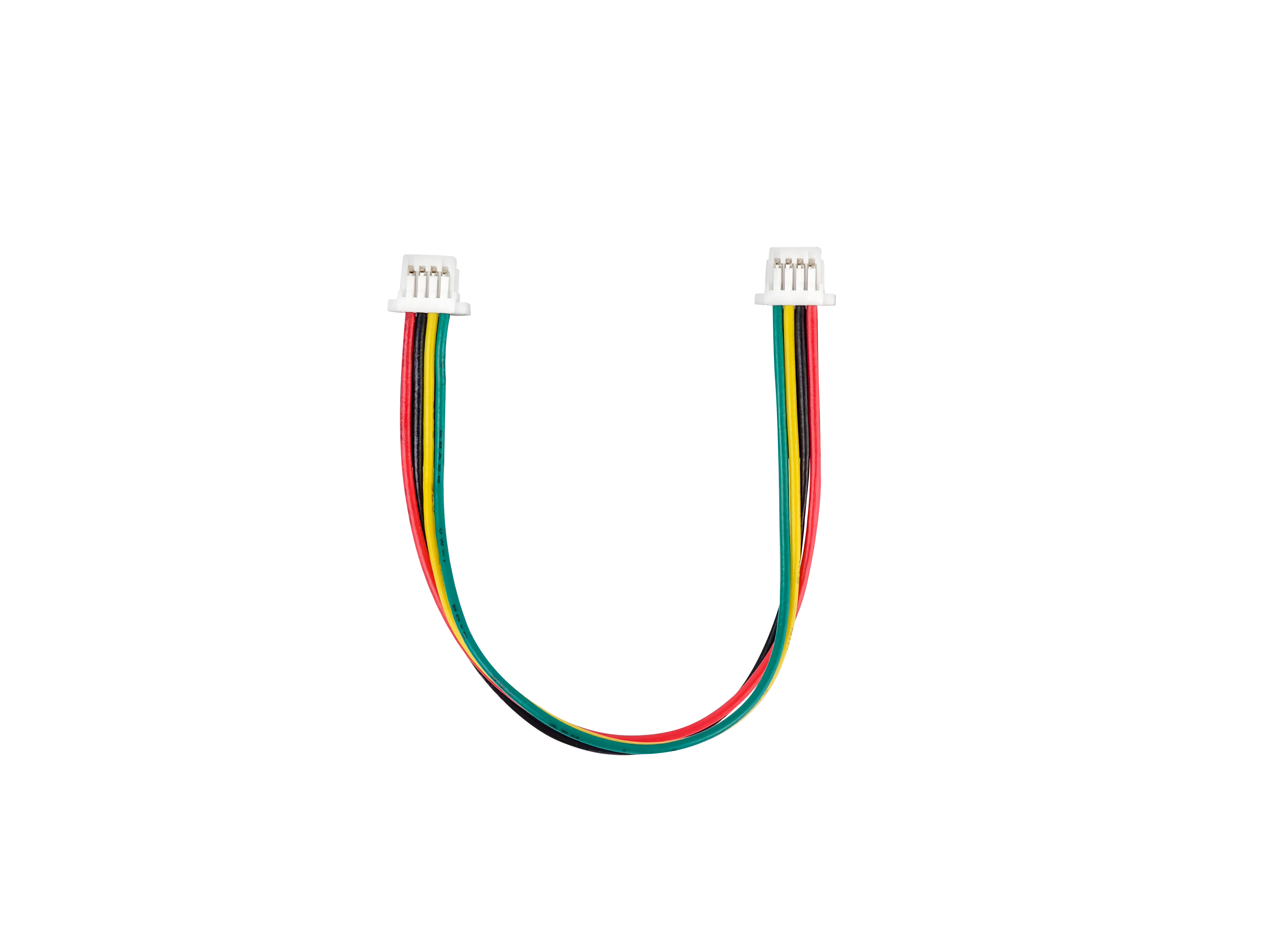

- 1x 4P Terminal Cable (1.0mm pitch, 20cm)
- Installation guide and software links
Why Choose IMX378 with Auto-Focus?
The Sony IMX378 sensor delivers exceptional image quality with its large F1.79 aperture, providing excellent low-light performance. The phase detection auto-focus system ensures sharp, clear images in any situation. With standard UVC protocol support, this camera works instantly with any operating system - no drivers or complex setup required. The dual connectivity options (USB Type-C and 4P terminal) make it perfect for both quick prototyping and production integration.
Perfect for developers, makers, and professionals building computer vision, robotics, streaming, or inspection systems requiring high-quality imaging with plug-and-play simplicity.
